ASTM A269/ASME SA269 Stainless steel 316L/S31603 seamless bright annealed tubing stainless steel seamless pipe
zheheng steel is one of exporter ,manufacturer ,supplier of 316 stainless steel pipes,316 seamless stainless steel pipes,ASTM a269 stainless steel pipe,s31603 stainless steel pipe,316l seamlss stainless steel pipe,ss asme stainless steel pipe,We can also supply stainless steel capillary tubes, which are widely used.Petrol, Oil and Nature gas, Chemical Industry,Boiler,Heat Exchange Architecture,Machine Equipment,City Decoration,Bridge, Food and Medical Industry,Electric Components,Shipping Manufacture,etc
Standard export package with metal strip, loaded into container with wooden, or as required.
The seamless steal pipes
features resistance to high presure,high/low temperature and corrosion ano is used in
the industries of petroleum,chemical
engineering and. Electric pwer as well as boiler
2.Description for 316L/S31603 seamless bright annealed tubing :
| Item: | Stainless steel tube/tubes/tubing Stainless steel pipe/pipes |
| Material: | Stainless steel |
| Grade: | 201 (1Cr17Mn6Ni5N) 202(1Cr18Mn8Ni5N) 304(0Cr18Ni9) 304L(00Cr18Ni10) 306(0Cr17Ni12Mo2) 316L(0Cr17Ni14Mo2) 321, 409, 409L, 430 |
| standards: | ASTM, ASME,EN, JIS, DIN,GB/T etc |
| Size: | Outer Diameter:1mm-10mm; 10mm-250mm |
| Wall Thickness: 0.01mm-4mm; 1mm-20mm |
| Length: 10mm -6000mm |
| Surface treatment | Polishing, Mirro surface, Bright, Pickling |
| Type: | Welded, ERW, seamless
|
3.1Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo | N |
| | | | | | | | | | |
| 316(0Cr17Ni12Mo2) | ≤0.08 | ≤0.07 | ≤2.0 | ≤0.04 | ≤0.03 | 11.0-14.0 | 16.0-18.0 | 2.0-3.0 | — |
| 316L(0Cr17Ni14Mo2) | ≤0.03 | ≤0.07 | ≤2.0 | ≤0.04 | ≤0.03 | 11.0-14.0 | 16.0-18.0 | 2.0-3.0 | — |
| 309s | ≤0.08 | ≤1.00 | ≤2.0 | ≤0.045 | ≤0.03 | 12.00-15.00 | 22.00-24.00 | | |
| 310s | ≤0.08 | ≤1.50 | ≤2.0 | ≤0.045 | ≤0.03 | 19.00-22.00 | 24.00-26.00 | | |
| 317l | ≤0.03 | ≤1.00 | ≤2.0 | ≤0.045 | ≤0.03 | 11.0-15.0 | 18.0-20.0 | 3.0-4.0 | |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.04 | ≤0.03 | 9.0-12.0 | 17.0-19.0 | | Ti≥5xC |
| 409 | ≤0.08 | ≤1.0 | ≤1.0 | ≤0.04 | ≤0.03 | ≤0.5 | 10.5-11.7 | | Ti6xC%≤0.70 |
| 409L | ≤0.03 | ≤1.0 | ≤1.0 | ≤0.04 | ≤0.03 | 0.5 | 10.5-11.7 | | Ti8xC%≤0.70 |
| 430 | ≤0.12 | ≤1.0 | ≤1.0 | ≤0.04 | ≤0.03 | | 16.0-18.0 | | |
| SS329J4L | ≤0.03 | ≤1.0 | ≤1.5 | ≤0.04 | ≤0.03 | 5.50-7.50 | 24.00-26.00 | 2.50-3.50 | |
3.2 Mechanical Property:
| ASTM | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elogation (%) | Hardness (HRB) |
| | | | | |
| 316 | ≥515 | ≥205 | ≥40 | ≤95 |
| 316L | ≥485 | ≥170 | ≥40 | ≤95 |
| 317L | ≥480 | ≥175 | ≥40 | ≤200 |
| 321 | ≥515 | ≥205 | ≥40 | ≤95 |
| 409 | ≥380 | ≥205 | ≥20 | ≤80 |
| 409L | ≥350 | ≥185 | ≥22 | ≤80 |
| 430 | ≥450 | ≥205 | ≥22 | ≤80 |
| SS329J4L | ≥620 | ≥450 | ≥18 | ≤320 |
4.0 Application:
| Application | Architectural/Civil Engineer | Handrails, door and window fittings, steel furniture, structural sections etc |
| Transport | Exhaust systems, car trim, road tankers, ship containers, ships chemical tankers etc |
| Chemical/Pharmaceutical | Pressure vessels, process piping etc |
| Oil & Gas | Platform accomodation, cable trys, subsea pipelines etc |
| | |
Our Services
You can select different sizes stainless steel products with high quality from a reliable manufacturer with reasonable price. We can supply stainless tube/pipe, stainless steel sheet&plate, stainless steel bar, stainless steel wire, stainless steel coil etc.

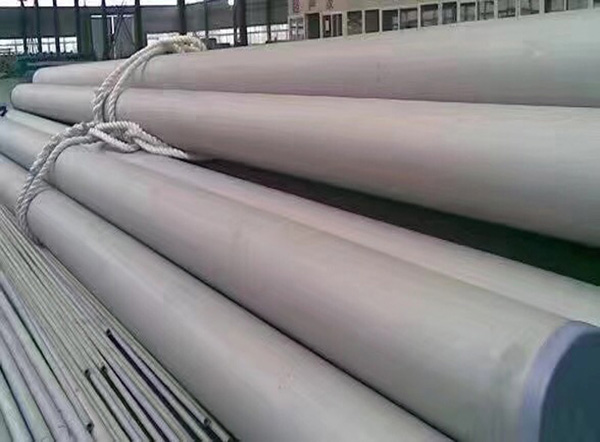

product show :
