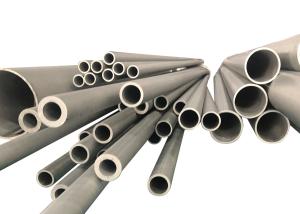

ASTM A312 Stainless Steel Pipe Polishing TP317 3 Inch SCH 40

Name: ASTM A312 Stainless Steel Pipe Polishing TP317 3 Inch SCH 40
Brand: Zheheng
Price: 1 USD

Quality ASTM A312 Stainless Steel Pipe Polishing TP317 3 Inch SCH 40 wholesale

Brand Name : Zheheng

Model Number : TP317

Certification : ISO9001

Place of Origin : Wenzhou,China

MOQ : MOQ 1Ton

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 1000 Ton/Tons per Month

Delivery Time : 7-15 working days after receiving payment

Packaging Details : In wooded cases or pallets,or as for clients requirement

Thickness : 1mm-150mm(SCH10-XXS) or as required

OD : 6mm-2500mm (3/8"-100") or as required

Section Shape : Round,Square,rectangular

Surface finish : Polishing, Hair line,Pickling

Price terms : FOB,CIF,CFR,EXW

Length : 1000-12000mm

Usage : industrial and commercial applications

Technique : Cold Drawn or Hot rolled

Steel Grade : 200 series,300 series,400 series

Contact Now

Trait

Good corrosion resistance: the main alloying elements of 317 stainless steel are chromium, nickel and molybdenum, which makes it have excellent corrosion resistance, especially suitable for strong acid, strong alkali and high temperature environment.

Excellent mechanical properties: 317 stainless steel has a high tensile strength and yield strength,elongation is also relatively high, but also has a high hardness and impact toughness, can still maintain stable performance in high temperature environment.

Easy to process and weld: 317 stainless steel can be processed and deformed by a variety of methods, such as cold working, hot working, deep drawing, etc.

High temperature strength: 317 stainless steel can still maintain high strength and stable performance in high temperature environment, which makes it widely used in high temperature field.

Specification

Ends	Plain end
Production process	The round steel→Peeling→Heating→Perforation→Acid picking→End preparation→Grinding→Lubricating→Cold-drawn→Degreasing→Annealing→Straightening→Acid picking→Finishing→Testing/inspection→seamless pipe→marking→packing→weighs→weighs→products storage→leaves the plant
Delivery time	within 45 -60 days.
Payment Terms	40% prepayment Balance before lodaing.
Shipping Terms	FOB NINGBO, after the inspection of goods at supplier's warehouse
Package	Standard export seaworthy package,or as required.

Common Industries

Architecture and Construction

Automotive and Transportation

Medical

Oil and Gas

Food and Drug

TP317 stainless pipe Chemical Composition

Grade	C (Max)	Mn (Max)	P (Max)	S (Max)	Si (Max)	Cr	Ni	Mo	Nitrogen (Max)	Cu/ Others
TP317	0.08	2	0.045	0.03	0.75	18.00 - 20.00	11.00 - 14.00	3.00 - 4.00	0.1	0

Mechanical composition

Grade	TensileStrength Mpa, (Min	Yield Strength Mpa, (Min)	%Age Elongation in 50mm gauge length min	Hardness (Max)


				BHN	Rb
TP317	515	205	35	217	95

Physical Properties

Thermal Conductivity	14.6	W.m -1.°K-1
Density	7.99	g/cm3
Specific Heat (0 To 100°C)	500	J.kg-1.°K-1
Thermal Expansion	16.5	mm/m/°C
Modulus Elasticity	193	GPa
Electrical Resistivity	7.4	μohm/cm

Uses

Offshore oil rigs

Chemical storage tanks

Fuel injection systems

Aerospace components

Kitchen appliances,architectural cladding panels and automobile exhaust systems

Product Testing

Coating Thk Test

Geometry inspection

Ultrasonic Inspection

Nondestructive Testing

Hydrostatic Testing

Package Process

1.with plastic cap to protect both ends

2.weaving bag wrapped outside the pipe

3.then pack into wooden case.
